Details

This product is suitable for the protection of audio line.It can prevent the damage of line induction overvoltage equipment due to earth potential increase and has low output residual voltage,little insertion loss and double overcurrent protection.

Model		HD-XC-AU
Nominal working voltage Un		110V
Maximum continuous working voltage Uc		180V
Nominal discharge current In (8/20ms)		2.5KA
Maximum discharge current Imax(8/20ms)		5KA
Rated load current		1.5A
Voltage protection level Up	(X-X)	650V
	(X-G)	650V
Response time Ta		≤0.1ns
Insertion loss		≤0.2dB
Insertion resistance		No
Number of protection lines		2,3
Protection grade		IP30
Interface mode		Connection terminal

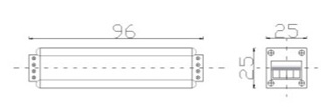

External dimension		962525/1135038mm
Sheathing material		Shielding metallic aluminum / Flame retardant thermoplastic material

Installation method:

Put an arrester in series at the leading end of the interface of lines of the protected equipment.”OUT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω).
