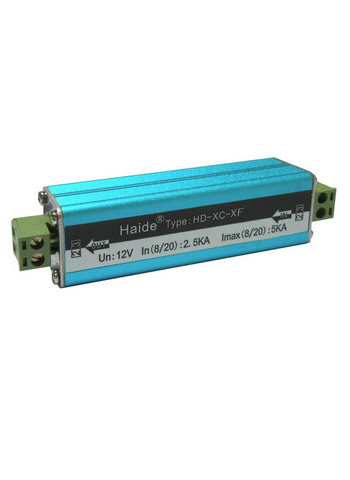

Data line lightning arrester HD-XC-XF

Online Inquiry
Click Refresh Verification Code

Details

This product is suitable for the protection of Monitor platform, decoding lines, access control data lines, background music, video intercom, intelligent three meter, a wide-used card and fire alarm circuits.It can prevent the damage of line induction overvoltage equipment due to earth potential increase and has low output residual voltage,little insertion loss and double overcurrent protection.




Model

HD-XC-XF

Nominal working voltage Un

12V

24V

Maximum continuous working voltage Uc

15V

32V

Nominal discharge current In (8/20ms)

5KA

5KA

Maximum discharge current Imax(8/20ms)

10KA

10KA

Rated load current

1.5A

1.5A

Voltage protection level Up

(X-X)

110V

150V

(X-G)

350V

350V

Response time Ta

0.1ns

Insertion loss

0.2dB

Insertion resistance

1Ω

Number of protection lines

2,3

Protection grade

IP30

Interface mode

Connection terminal

External dimension

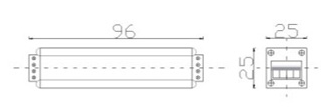

96*25*25/113*50*38mm

Sheathing material

Shielding metallic aluminum / Flame retardant thermoplastic material


Installation method:

Put an arrester in series at the leading end of the interface of lines of the protected equipment.”OUT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance4Ω)
