Cabinet type explosion proof power supply lightning protection boxsmall


Performance Instruction:

Electric surge protector of low-voltage distribution system, which is in the form of a box, is explosion proof and designed according to IEC standard. It has invalidation detection indication, overflowing and overheating protection, and powerful discharge capacity of lightning current. It's applicable to the protection of buildings' general supply system against lightning. This lightning arrester is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of equipment fixed later.


Model

HD-D380(220)B-XSF60

HD-D380(220)C-XSF40

HD-D380(220)C-XSF20

HD-D380/220C-XSF

Nominal working voltage Un

380V/220V

380V/220V

380V/220V

380V/220V

Maximum continuous working voltage Uc

385V/275V

385V/275V

385V/275V

385V/275V

Nominal discharge currentIn8/20ms

 30KA

20KA

10KA

20KA

Maximum discharging currentImax8/20ms

 60KA

40KA

20KA

40KA

Voltagprotection level Up

2KV

1.6KV

1.2V

2.1KV

Prepositive overflowing protection

63A

32A

16A

32A

Overall dimension

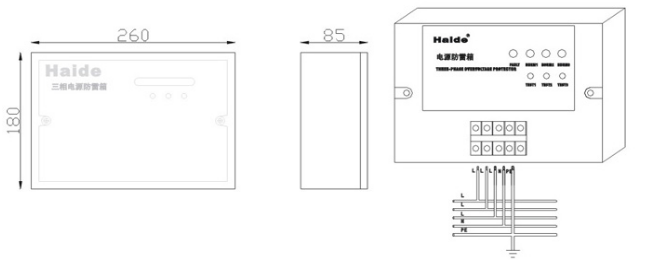

260×180×85mm

Response time Ta

25ns

Operating temperature range Tup

-40℃至+70℃

Working order indication

Green light means normal working, red light is fault indication.

Section of minimum installed conductor

6m2 Multi-folded wire

Explosion proof function

Available

Protection grade

IP20

Sheathing material

Mellozing

Mode of connection

Parallel connection

Protection mode

4+0/3+1/1+1/2+0


Installation Method:

Ground the null line repeatedly when long-distance overhead incoming feeder is connected to the building.
Plug the power phase line (L) and null line (Ninto corresponding connector of the electric surge protector and make sure it's firm and reliableand connect the ground terminal of arrester with the ground lead of lightning protection appropriately (recommended earth resistance ≤4Ω).
Suggested specification of the lead wire: no less than 10m2, short and straight.
