Details

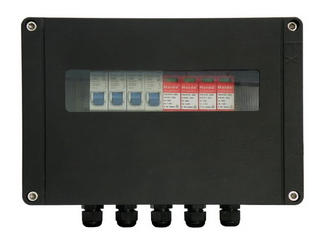

EX explosion proof lightning protection box

Interior arrangement of this product adopts fireproofing ethoxyline resin full seal, which has totally no discharge of electric arc.

With certification of EX explosion proof function, it's more protective. It's applicable to Grade 3 lightning protection of general

supply in building, machine room, plant, enterprise and some other operating environment, which can restrain the overvoltage

on the power line effectively and make sure the safe operation of electronic equipment and other utilization equipment.


	Technical Parameter List:


















						Model







						HD-D380(220)C-EX60







						HD-D380(220)C-EX40







						HD-D380(220)C-EX20










Nominal working voltage Un



						380V/220V




						380V/220V




						380V/220V





Maximum continuous working voltage Uc



						385V/275V




						385V/275V




						385V/275V





Nominal discharge current In（8/20µs）



						30KA




						20KA




						10KA





Maximum discharging current Imax（8/20µs）



						60KA




						40KA




						20KA





Voltage protection level Up



						2KA




						1.6KV




						1.2KV





Prepositive overflowing protection



						63A




						32A




						15A

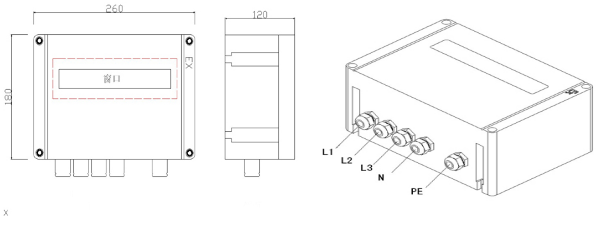

Dimension



						260×180×120mm





Response time Ta



						≤25ns





Operating temperature range Tup



						-40℃至+70℃





Section of minimum installed conductor



						6mm²multi-folded wire





Explosion proof function



						Yes





Protection grade



						IP67





Sheathing material



						Aluminum alloy





Mode of connection



						Parallel





Protection mode



						4+0/3+1/1+1/2+0

Model	HD-D380(220)C-EX60	HD-D380(220)C-EX40	HD-D380(220)C-EX20
Nominal working voltage Un	380V/220V	380V/220V	380V/220V
Maximum continuous working voltage Uc	385V/275V	385V/275V	385V/275V
Nominal discharge current In（8/20µs）	30KA	20KA	10KA
Maximum discharging current Imax（8/20µs）	60KA	40KA	20KA
Voltage protection level Up	2KA	1.6KV	1.2KV
Prepositive overflowing protection	63A	32A	15A
Dimension	260×180×120mm
Response time Ta	≤25ns
Operating temperature range Tup	-40℃至+70℃
Section of minimum installed conductor	6mm²multi-folded wire
Explosion proof function	Yes
Protection grade	IP67
Sheathing material	Aluminum alloy
Mode of connection	Parallel
Protection mode	4+0/3+1/1+1/2+0
