HD-LED10

Online Inquiry
Click Refresh Verification Code

Details

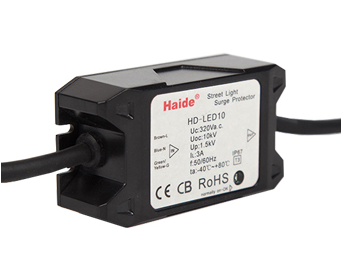

This product is used for the LED lamps and lanterns of protection and lightning surge pulse.Due to the LED lamps and lanterns for the core of the device is a semiconductor diode,ability is extremely low,even overvoltage,5-6V is enough to destroy the light bead,so you need to select special lightning protection device for the LED power supply lines to surge overvoltage protection,avoid large area caused by lighting strike the same region,the situation of the LED lamps and the lanterns of the black light,the company developed product has the following characteristics :

1. This product is in series.series connection type timely diagnose working state of the lightning protection and change in time so as not to cause secondary lightning lamps;

2. It has large absorption capacity for surge, low output residual voltage, compact appearance, optional waterproof structure, and easy installation.





MODEL

HD-LED10

Nominal working voltage Un

110-277V

Maximum continuous working voltage Uc

320V

Nominal discharge current In 8/20μs

5KA

Maximum discharging current Imax8/20μs

10KA

Withstand impact voltage UOC

10KV

Voltage protection level Up

1.2KV

Drain currrent Ir

5uA

Rated load current IL

10A

Response time Ta

25ns

Protection grade

IP67

Sheathing material

Flame retardant thermoplastic material

Fault indication

optional

Water-proof function

Yes

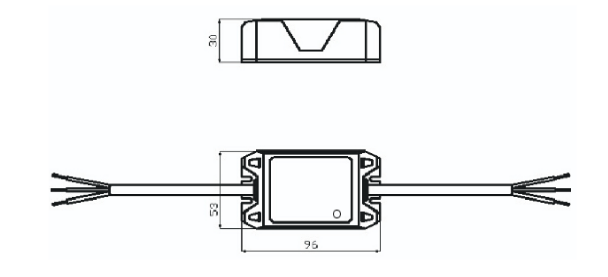

External dimension

96*53*30mm

Mode of connection

series connection

Interface mode

Connection terminal

Operating temperature range Tup

-40℃至+70


1) When the voltage parameters of the protector does not match the equipment operating parameter,it may affect the work of circuit. It is recommended to determine the device operating voltage when selecting.

2) Because the protector is installed in series, for some relatively large power devices, other operating currents should also be determined.

3) Plug the power phase line (L) and null line (N)into corresponding connector of the electric surge protector and make sure it's firm and reliable. Connect the ground terminal of arrester with the ground lead of lightning protection appropriately (recommended earth resistance 4Ω).
