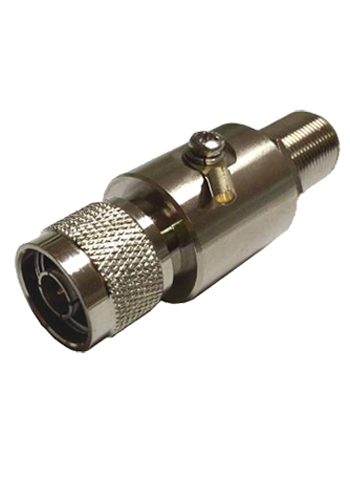

Antenna feeder lightning arrester


The high-frequency antenna feeder surge protection device is suitable for the protection of a GSM mobile base station, a PHS base station, a satellite receiver, an interphone base station with feed lines and ratio-frequency lines, has very low output residual voltage, can effectively protect receiving equipment, and has high-efficient protection function against lightning high voltage pulse inducted from antenna line, having the standing wave ratio of 1.15, insertion loss less than 0.2dB, and applied frequency of 0-400M, 0-900 M, 0-1800 M, and 0-2000 M.


Model

HD-XH-T400

HD-XH-T900

HD-XH-T1800

HD-XH-T2000

HD-XH-T2500

Lightning withstand capacity

5KA

5KA

5KA

5KA

5KA

Insertion loss

0.2dB

0.2dB

0.2dB

0.2dB

0.2dB

Standing wave ratio

1.15

1.15

1.15

1.15

1.15

Input/output impendence

50/75W

50/75W

50/75W

50/75W

50/75W

Upper frequency limit

400MHZ

900MHZ

1800MHZ

2000MHZ

2500MHZ

Interface mode

L46/L16/N/SMA

L46/L16/N/SMA

L16/N type

N type

N type

Response time Ta

2ns

Working temperature range Tup

-40+80

Limiting voltage (8/20ms)

600V

Degrees of protection

IP30

Enclosure material

Shielded metallic aluminum

External dimension

77×25×25mm


Installation:

The front end of the line interface of a protected device is connected in series with the lightning arrester; the OUT is the device end, the IN is the incoming line end; and the grounding end and the lightning protection ground wires (preferred the grounding resistance4Ω) of the lightning arrester are given good electric connection.
