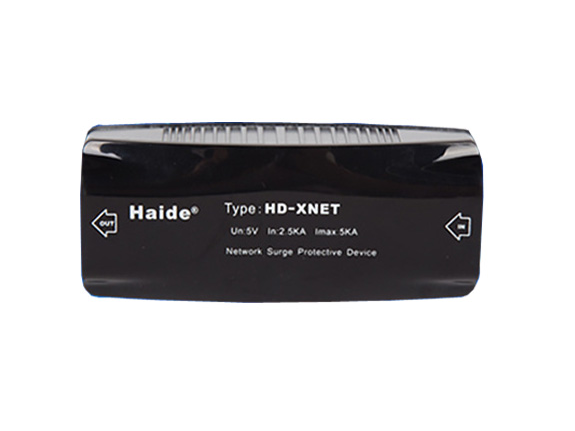

Computer network lightning arrester HD-XNET

Online Inquiry

ProductName * :

E-mail * :

Contacts :

Tel :

Content :

Validatecode * :

Details

Computer network surge protector

Computer network signal surge protector is designed according to the standard of IEC electric surge protector.It is considered fully that the electrode capacitance and distributed capacitance would lesson data signal with small insertion loss and lower output residual voltage.It has superior transmisson performance ,quick action,less insertion loss,RJ45 interface,4 wires and 8 wires protection and 100M bandwidth.

Model		HD-XNET
Rated voltage Un		5V
Maximum continuous working voltage Uc		12V
Withstanding impulse voltage Uoc		5KV
Impact current Iimp		1.5KA
Nominal discharge current In(8/20μs)		2.5KA
Maximum discharging current Imax(8/20μs)		5KA
Voltage protection level Up	X-X	≤70V
	X-G	≤400V
Series impedance R		1Ω
Bandwidth FG		100M
External dimension		965038mm
Response time Ta		≤1ns
Insertion loss		≤0.2dB
Operating temperature range Tup		-40℃ to +70℃
Number of guard wire		1,2,3,6wire
Protection grade		IP20
Sheathing material		Shielding plastic fire-proof material

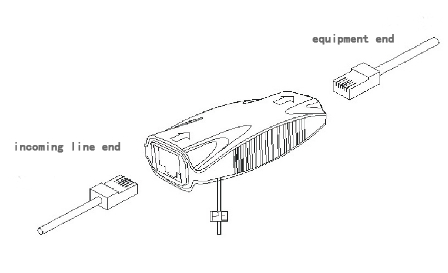

Mode of connection		Connection in series
Interface mode		RJ45
Fixed way		Guide
