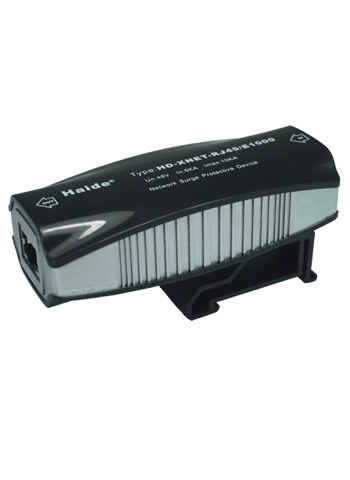

New Gigabit Network Surge Protector HD-XNET-RJ45/E1000

Online Inquiry

ProductName * :

E-mail * :

Contacts :

Tel :

Content :

Validatecode * :

Details

This product is designed according to TIA/EIA568B-2.1 and ISO/IEC11801 standard.The universal RJ45 terminal can connect it to leading end of the protected equipment conveniently.The high quality and high discharge capability electirc surge protector as well as the low capacity and ultra-fast recovery diode matrix structure can provide high energy coarse protection and low energy fine protection to data line,having favorable frequency transmission property as well as higher through flow and fast response speed,which can be used in the integrated wiring of network in office and industry as well as data communication system with similar usage,such as 1000M Ethernet,ATM,ISDN,VOIP network,POE system etc.

MODEL		HD-XNET-RJ45/E1000/8A	HD-XNET-RJ45/E1000/8B
Nominal working voltage Un		36V	36V
Maximum continuous working voltage Uc		48V	48V
Nominal discharge current In （8/20μs）		2.5KA	5KA
Maximum discharging current Imax（8/20μs）		5KA	10KA
Voltage protection level Up	X-X	≤130V	≤130V
	X-G	≤600V	≤600V
Response time Ta		≤1ns	≤1ns
Operating temperature range Tup		-40℃ to +70℃	-40℃to+70℃
Protection grade		IP20	IP20
Insertion loss		0.2dB	0.2dB
Mode of connection		connection in series	connection in series
Number of guard wire		1-8 line	1-8 line

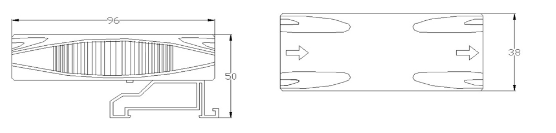

External dimension		96×50×38mm
Sheathing material		Plastic fire-proof box

Installation method：

Put an arrester in series at the leading end of the line interface of the protected equipment.”OUT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
