 Surge protector for network

Computer network signal surge protector is designed according to the standard of IEC electric surge protector.It is considered fully that the electrode capacitance and distributed capacitance would lesson data signal with small insertion loss and lower output residual voltage.It has superior transmisson performance ,quick action,less insertion loss,RJ45 interface,4 wires and 8 wires protection and 100M bandwidth.


Model

HD-XNET-RJ45/4

HD-XNET-RJ45/8

Rated voltage un

5V

12V

Maximum sustained voltage Uc

12V

15V

Nominal discharge current In（8/20ms）

2.5KA

300A

Maximum discharging current Imax（8/20ms）

5KA

600A

Voltage protection level Up

（X-X）≤70V

（X-X）≤85V

（X-G）≤400V

（X-G）≤85V

Series impedance R

1Ω

无

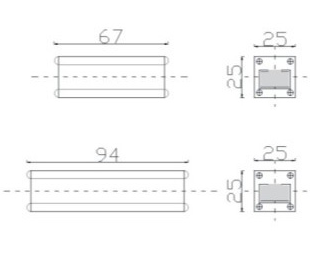

Dimension

94×25×25mm

67×25×25m

Response time Ta

≤1ns

Insertion loss

≤0.2dB

Operating temperature range Tup

-40℃至+70℃

Number of guard wire

1,2,3,6 wire

8-wire full protection

Protection grade

IP20

Sheathing material

Shielding metallic aluminum

Mode of connection

Connection in series

Interface mode

RJ45


Installation method：

Put an arrester in series at the leading end of the line interface of the protected equipment.”OUT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
