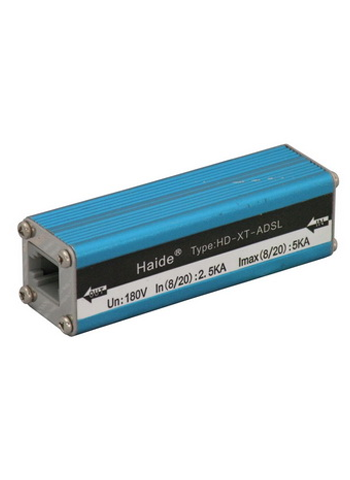

ADSL Communication line lightning arrester

This product has very low output residual voltage and it can ensure the quick response time.The interface mode has the choices of RJ11,RJ45 and connection terminal,and so on.

It is typically applied to telephone,ADSL,DDN,ISDN,fax machine,modem and SPC exchange.

MODEL		HD-XT-ADSL
Nominal working voltage Un		180V
Maximum continuous working voltage Uc		200V
Nominal discharge current In（8/20μs）		2.5KA
Maximum discharging current Imax（8/20μs）		5KA
Voltage protection level Up	（X-X）	400V
	（X-G）	400V
Response time Ta		≤1ns
Insertion loss		≤0.2dB
Series impedance R		4Ω
Data transmission rate		20M
Protection grade		IP20
Sheathing material		Shielding metallic aluminum
Operating temperature range Tup		-40℃至+70℃

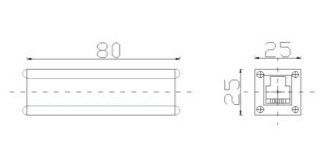

External dimension		80×25×25mm
