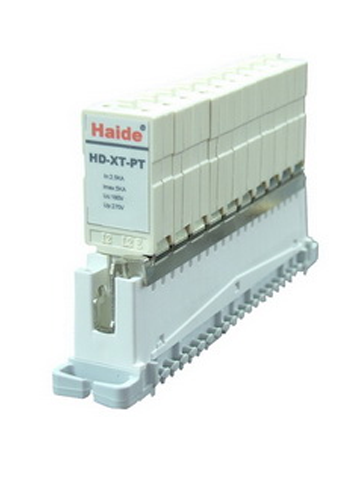

                                                                           SPC exchange lightning arrester

This product is designed according to the standard of IEC surge protection device,which is suitable for SPC exchange eqiupment (LSA-PLUS) and has special standard socket.It internally contains the communication line protection of 10-line series connection and has double functions of over-voltage and over-current protection,which can be in a pull type.



MODEL

HD-XT-PT/10

Nominal working voltage Un

180V

Maximum continuous working voltage Uc

230V

Nominal discharge current In 8/20μs

2.5KA

Maximum discharging current Imax8/20μs

5KA

Voltage protection level Up

X-X

250V

X-G

250V

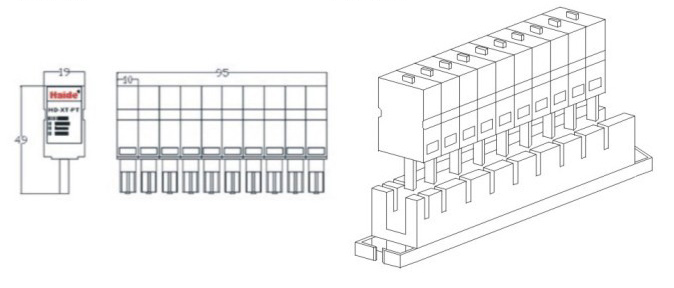

External dimension

95×19×49mm

Response time Ta

100ns

Operating temperature range Tup

-40to +70

Insertion loss

0.2dB

Data transmission rate

1Mbps

Protection grade

IP50

Sheathing material

Fire-proof PBT

Interface mode

Pull type


Installation method:

Put an arrester in series at the leading end of the line interface of the protected equipment.”OUT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance4Ω)
