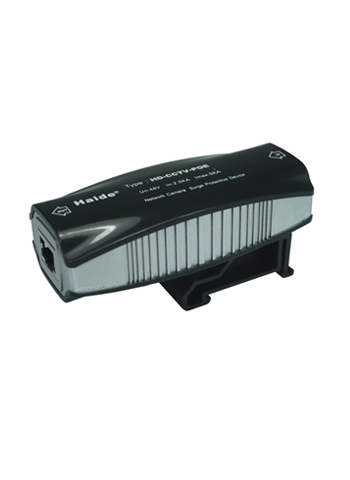

POE network video surge protector

This product can respectively carry out surge protection  of the power supply and video lines of a camera,the enclosure adopts an shielding plastic structure.This product has a small volume and very low output residual voltage.Its design is fully considered that the attenuation of data signal transmission between the device inter-electrode capacitance and distributed capacitance. It also has low insertion loss and the data transmission rate can up to 100Mbit/s that can fully meet the video signal transmission requirements and has the advantage of quick response to transient overvoltage.


Model

HD-CCTV-POE/A

Based on IEC61643-11/IEC61643-21SPD

III/T3

C2/D1

Protective line

Power line

Network line

Nominal working voltage Un

48V

48V

Maximum continuous working voltage Uc

60V

60V

Nominal discharge current In 8/20μs

2.5KA

2.5KA

Maximum discharging current Imax8/20μs

5KA

5KA

Voltage protection level Up

200V

150V

Rated load current IL

1A


Drain current

5μA


Response time Ta

25ns

1ns

Insertion loss


0.2dB

Insertion resistance


Bandwidth FG


100M

Protection grade

IP30

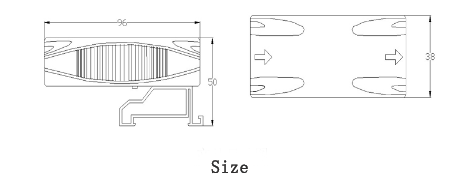

External dimension

96*50*38mm

Sheathing material

Shielding plastic fire-proof material

Operating temperature range Tup

-40to+70

Interface mode

RJ45

Number of guard wire

4578 wire1,2,3,6 wire

1,2,3,6 wire

Fixed way

Guide


Installation method:

Put an arrester in series at the leading end of the interface of lines of the protected equipment.”OUT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance4Ω).
