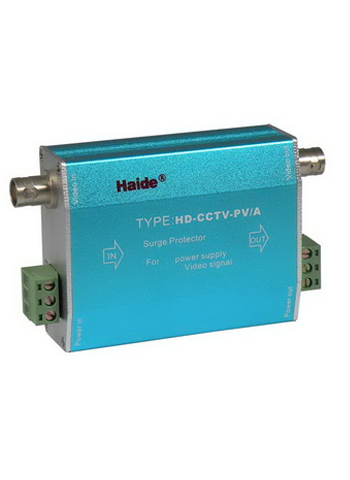

Two-in-one video lightning arrester HD-CCTV-PV

Online Inquiry
Click Refresh Verification Code

Details

This product can separately carry out surge protection on the power supply and network lines of the network camera.,the enclosure adopts an integral aluminum alloy structure.This product has a small volume and very low output residual voltage.Its design is fully considered that the attenuation of data signal transmission between the device inter-electrode capacitance and distributed capacitance. The low insertion loss can fully meet the video signal transmission requirements and has the advantage of quick response to transient overvoltage.



MODEL

HD-CCTV-PV

Protective line

video line

power line

Nominal working voltage Un

±5V

12V

24V

220V

Maximum continuous working voltage Uc

±6.8V

16V

32V

275V

Nominal discharge current In8/20μs

2.5/5/1.5KA

5KA

Maximum discharging current Imax8/20μs

5/10/3KA

10KA

Voltage protection level Up

X-X40/75/35V


X-G400V

Limit voltage Up


55V

160V

1.1KV

Rated load current IL


1A

Drain current IA

5цA

Insertion loss

0.2dB


Insertion resistance

1Ω

Bandwidth FG

40MHZ

Response time Ta

1ns

25ns

Protection grade

IP30

Operating temperature range Tup

-40℃至+70

External dimension

108×63.5×28mm

Sheathing material

Shielding metallic aluminum

Interface mode

BNC

Connecting terminal


Installation method:

Put an arrester in series at the leading end of the line interface of the protected equipment.”OUT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance4Ω).
