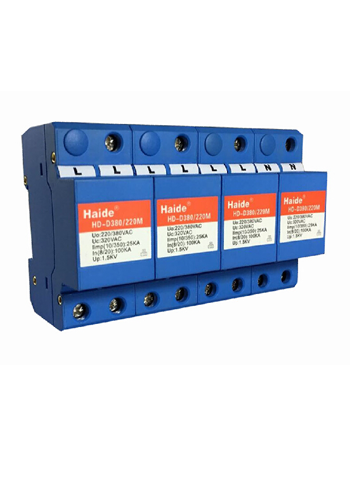

Electric surge protector of composite low-voltage distribution system is design according toIEC standard.It adopts the most advanced technology of preignition clearance and automatic matching of energy and has invalidation detection indication,standard modularization installation ,and powerful discharge capacity of lightning current.It’s applicable to the protection of building’s genneral supply system against lightning.With 35mm standard guide-way,this lightning arrester is very convenient to be maintained.It connects with the circuit in parallel and has no limit to the power of equipment fixed later.




Model

HD-D38O/220M

Nominal working voltage Un

380V/220V

Maximum continuous working voltage Uc

320V

Lightning impulse current Iimp10/350μs

25KA

Nominal discharge current In8/20μs

100KA

Voltage protection level Up

1.5KV

Freewheeling suppression If

3KA

Response time Ta

100ns

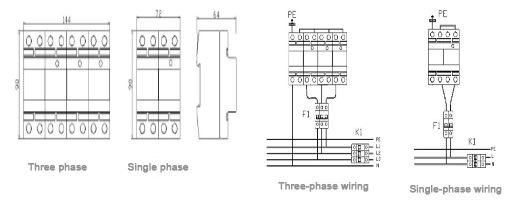

External dimension

144/72×90×64mm

Operating temperature range Tup

-40to +70

Section of minimum installed conductor

6mm2 multi-folded wire

Protection grade

IP20

Sheathing material

Flame retardent thermoplastic material

Mode of connection

Parallel connection

Protection mode

4+0/3+1/1+1/2+0


Ground the null line repeatedly when Long-distance overhead incoming lines enter buildings.

Plug the power phase line (L) and null line (Ninto corresponding connector of the electric surge protector and make sure it's firm and reliable. Connect the ground terminal of arrester with the ground lead of lightning protection well (recommended earth resistance 4Ω).

Suggested specification of the lead wire: no less than 6mm2, short and straight.
