Power supply lightning protection series

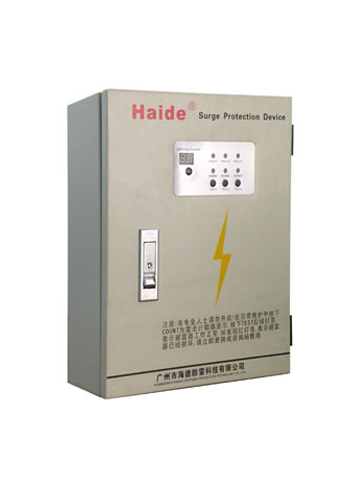

Electric surge protector of composite low-voltage distribution system, which is in the form of a box, is designed according to IEC standard. It adopts the most advanced technology of preignition clearance and automatic matching of energy and has validation detection indication, overflowing and overheating protection, lightning stroke numbering display and powerful discharge capacity of lightning current. It can be used in Grade B and C lightning protection for the general supply of building, machine room, plant and enterprise to make sure the safe operation of electronic equipment and other utilization equipment. This lightning arrester is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of equipment fixed later.
|
MODEL
|
HD-D380（220）BC-XL200
|
HD- D380（220）BC-XL100
|
HD- D380（220）BC-XL60
|
HD-D380/220B-XL
|
|
Nominal working voltage Un
|
380/220V
|
380/220V
|
380/220V
|
380/220V
|
|
Maximum continuous working voltage Uc
|
385/275V
|
385/275V
|
385/275V
|
385/275V
|
|
Nominal discharge current In（8/20μs）
|
200KA
|
100KA
|
60KA
|
10KA
|
|
Voltage protection level Up
|
2KV
|
1.5KV
|
1KV
|
2.5KV
|
|
Response time Ta
|
100ns
|
|
Operating temperature range Tup
|
-40℃to+70℃
|
|
Working condition indication
|
Green light means work normally,red light means fault indicaiton.
|
|
Section of minimum installed conductor
|
6mm2 multi-folded wire
|
|
Protection grade
|
IP20
|
|
External dimension
|
280*350*130mm
|
|
Sheathing material
|
Metal spraying
|
|
Mode of connection
|
parallel connection
|
|
Protection mode
|
4+0/3+1/1+1/2+0
|
Ground the null line repeatedly when Long-distance overhead incoming lines enter buildings.
Plug the power phase line (L) and null line (N）into corresponding connector of the electric surge protector and make sure it's firm and reliable. Connect the ground terminal of arrester with the ground lead of lightning protection well (recommended earth resistance≤4Ω).
Suggested specification of the lead wire: no less than 6mm2, short and straight.
